Mobile Stacker With Roller Butterfly Cage Foldable Wire Mesh Cage
1. Product introduction
Storage cage, also known as warehouse cage and butterfly cage, is a
very important type of logistics container in storage and
transportation. It has the advantages of fixed storage capacity,
neat stacking, clear storage, convenient inventory counting and so
on. At the same time, it also improves the effective utilization of

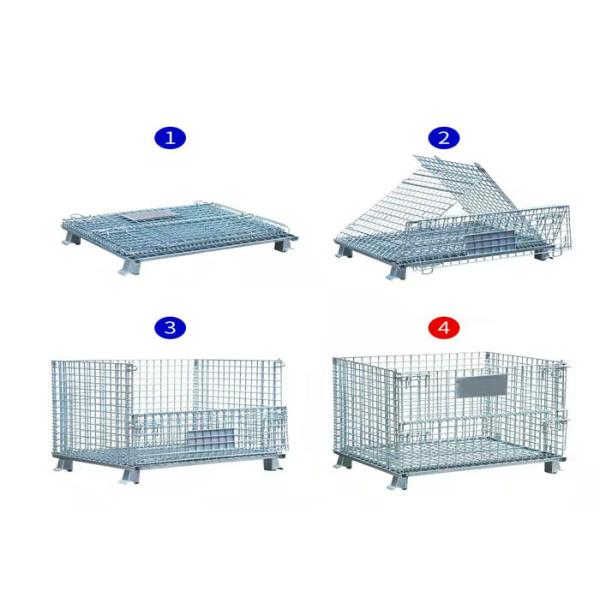

storage space. The storage cage can be folded freely and can be
folded and stored when not in use, saving warehouse space.
2. Parameter table
|Wire diameter(mm)||Grid (mm)||Bearing(kg)||Dead weight(kg)|
|Wire diameter(mm)||Grid (mm)||Bearing(kg)||Dead weight(kg)|
|Wire diameter(mm||Grid (mm)||Bearing(kg)||Dead weight(kg)|
3. Product application
Used for storage, classification, transportation and storage of raw
materials, semi-finished products and finished products. It can be
used not only as a three-dimensional means of storage,
transportation, loading and unloading, but also as a turnover box
for logistics, but also as a sales tool. It is applicable to all
links of logistics turnover and runs through the whole process of
logistics. It is common in large warehouse supermarkets and
4. Product advantages
1. It is made of high-quality steel by cold rolling, hardening and
welding, with high strength and large loading capacity.
2. The specification is unified, the capacity is fixed, the stored
goods are clear at a glance, and it is easy to inventory.
3. The surface is galvanized, beautiful, anti-oxidation and long
4. International standards are adopted, which can be used together
with containers to effectively improve space utilization.
5. Production process
The main raw material of the storage cage is high-strength steel
wire drawn by high-speed wire, and the general wire diameter is
5mm, 6mm and 6.4mm. The mesh spacing of mesh welding is generally
50 × 100,100 × 100,50 × 50. The bottom of the storage cage is
welded by U-shaped steel, which is rolled by cold-rolled strip
mill, and the four corners of the bottom are punched by stamping
parts at one time.
6. Installation method
1. Before installation and construction, be familiar with drawings,
and prepare construction scheme for three-dimensional warehouse,
special or complex installation.
2. Unpack all the packages on the shelf and check whether all parts
and accessories are complete according to the installation
3. Install the main shelf. Place the main shelf in a reasonable
position as shown in the drawing. One end of the beam is aligned
with the bayonet of the main frame column and the other end is
aligned with the bayonet of the sub frame. Install the screws,
adjust them to an appropriate distance, and tighten the screws with
an adjustable wrench.
7. matters needing attention
1. The loading and use instructions of the storage cage shall be
clear, and shall be used within the bearing range, and shall not be
collided by the forklift.
2. Protective measures shall be taken for the storage cage. It
shall not be placed in a wet place, which is easy to rust the
surface of the product. Store the specified items according to the
specified requirements. Do not store strong acid and alkali items,
and do not put items randomly. Add a layer of plastic film to carry
the items with water.
3. The surface of the storage cage is usually sprayed with antirust
paint or galvanized, and the metal material box is rusted. When the
surface treatment of the box is worn, it is treated with self
painting, which is economical. When the surface of the box is
seriously worn, it can be sprayed again.
4. The conveying system is controlled by PLC and exchanges data and
information with other equipment through the network. When the
network host computer is shut down, the conveying control system
and the stacker control system can directly realize point-to-point
communication and data exchange to ensure the normal operation of
incoming and outgoing conveying. When the upper computer resumes
working, the control systemThe system automatically transmits the
data to the upper computer.
5. Sorting system. It is connected with PLC, other equipment and
communication lines through fieldbus. Tower sorters shall be
selected for distribution centers that require a very large volume
of distribution and sorting business.
6.Moisture-proof. In the north, you can center the rust resistance
of the storage cage. In foggy weather, wipe off the water drops on
the surface with dry cotton cloth; On rainy days, wipe the water
droplets in time after the rain stops. In the south, try to add
rain cloth and accessories for outdoor use.
8. Packing method
Place the folded storage cage one by one from low to high, pack it
with packaging film, and trap both ends of the storage cage with
packaging tape to prevent sliding. It can also be packaged
according to customer requirements.
